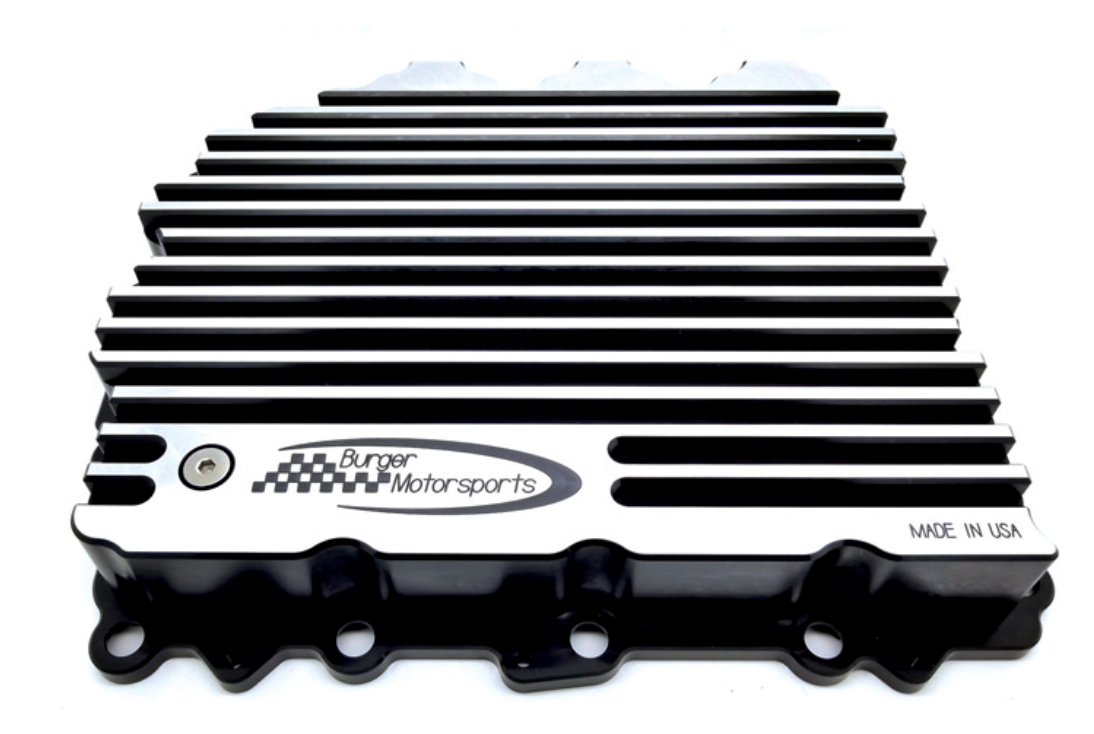

BMS Billet Aluminum BMW DCT transmission high capacity oil pan

Better DCT Clutch Performance, Cooling, & Longer Transmission Life

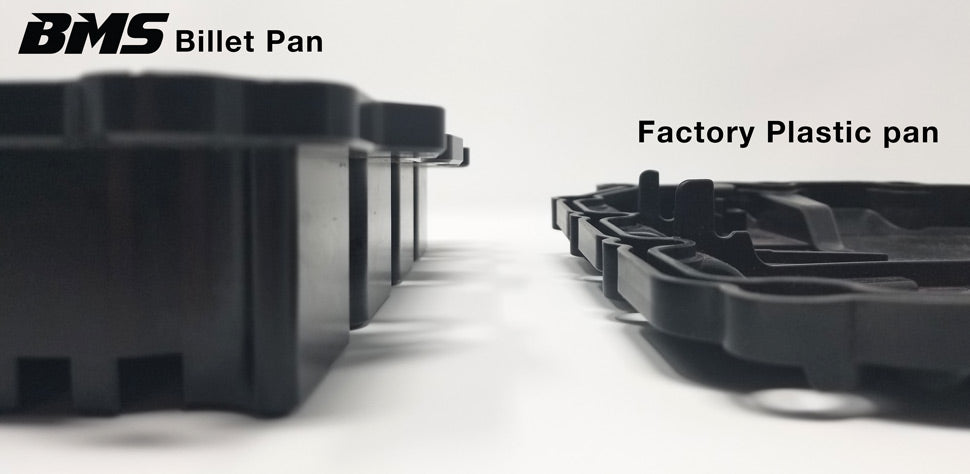

It's common knowledge that excessive heat can be detrimental to your automatic transmission, and it's also well-known that higher power levels can lead to increased transmission fluid temperatures. Now, you have the opportunity to enhance the durability and performance of your automatic transmission with the Burger Motorsports high-capacity billet DCT racing transmission pan. Replaces the factory-installed, shallow plastic DCT pan, offering superior transmission cooling, heightened performance, and extended longevity.

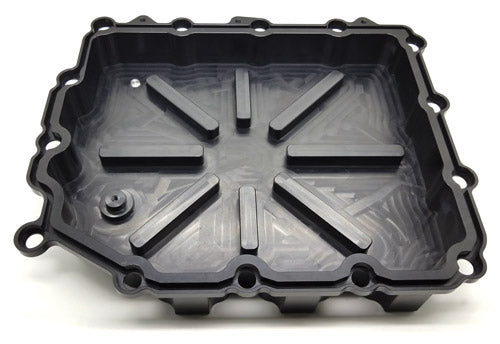

CNC machined from lightweight billet aluminum, this transmission pan boasts cooling fins and increased oil capacity. These features work in harmony to ensure that your transmission operates at optimal temperatures, thereby enhancing its overall lifespan. Please note that for certain vehicle models, the installation of the high-capacity pan may necessitate the removal or modification of the transmission under tray.

This product is proudly made in the USA, reflecting our commitment to quality and precision in automotive engineering.

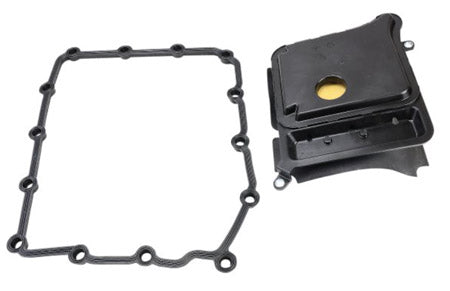

New rubber pan gasket and suction filter included.

FEATURES AND BENEFITS

• CNC machined from high quality 6061 billet aluminum in the USA
• Large heat sink fins keep the DCT trans fluid cooler and dissipate heat faster for better clutch performance & longer transmission life
• Holds double the capacity of the factory pan, an additional 1 1/8 quarts further improving transmission cooling and service life
• Retains trans fluid filter and magnet
• Retains trans pan gasket and fittings for a leak and trouble-free installation
• Includes enhancements and O-rings and/or gaskets that are required for filter installation
• New rubber pan gasket and suction filter included
• BMS pan thickness 1.940" (49.27mm)
• Meets or exceeds OEM specifications

• For racing and street applications
• Made in USA


Vehicle Fitment

• DCT E82 / E88 135i
• DCT E90 E91 E92 E93 335i, 335is, M3
• DCT F80 F82 F83 M2 / M3 / M4 / M4 GTS
• DCT F10 M5
• DCT F06 / F12 / F13 M6
• DCT E89 Z4



Replaces OE part numbers 28108070791 and 28107842385



DCT pan and filter install video
