Mr12Volt MOST Bus BMW CCC M-ASK CarPlay & AA Interface - BMW E9X 3 series | E6X 5 | 6 Series

INSTALLATION IS AVAILABLE AT OUR LUTON LOCATION

We still love the older BMW models, with them providing a driving experience that is so different to newer cars. One thing we do miss from the current models is the ability to have wireless CarPlay and Android Auto.

With the Mr12Volt box this problem is solved, bringing the car up-to-date with full functionality of both systems. This means you can have your phone connected for music, podcasts, navigation and also phone calls. All whilst being able to operate it using the original iDrive controller.

By utilising the MOST Bus there is no loss in audio quality, and the built in DSP means you can tweak the audio settings to get the most out of your speakers.

The full functionality of the original iDrive system is retained along with the original iDrive display.

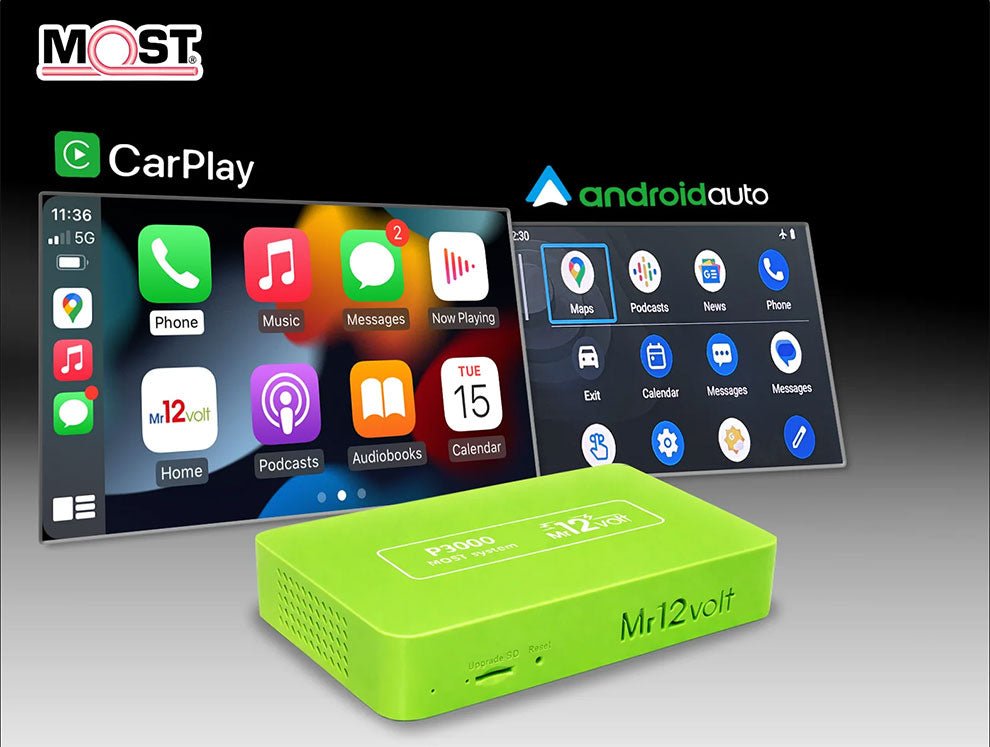

MOST Bus CarPlay & Android Auto Interface

Model No: P2000-CCCMD
The brand new Mr12Volt P2000 MD series
has just gotten better now with a built-in highly customizable 15 bar DSP equalizer!

Compatible for BMW Radio with CCC, M-ASK, M-ASK II (8.8"/6.5")

• 3 Series - E90, E91, E92, E93
• 5 Series - E60, E61
• 6 Series - E63, E64
• X5 - E70
• X6 - E71

*** A CD changer (CDC) must have been installed, or the CDC feature has been enabled in order to use this product

Highlight Features

• Runs on MOST BUS with High-End sound quality
• Wireless & Wired Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Reverse/Front/Left/Right camera Input

• Supports Apple Lossless music streaming
• Highly Customizable 15 bar DSP Equalizer

How it works

• If a CD changer is fitted in the car, it must be disabled (Bypass Loop connector is included in the package to disable CD changer)
• Mr12volt is selected through "CD" button and played through CD changer channel
• Supports aftermarket cameras up to AHD720
• Does Not support the integration of OEM microphones, however both BMW and Mr12volt Bluetooth can be connected at the same time. BMW will handle as HF and Mr12volt as HF/Media (as a result, BMW HF will take over Mr12volt when a call is received)
• SIRI / VA commands must be input with the microphone supplied with P2000

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
• JPEG codec (Baseline interleaved) 8176x8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)
